Morris Cowley and Morris Oxford 1954-1958

Location and quantity of suspension bushes and dust seals

Taken from 1965 BMC service parts list AKD1045

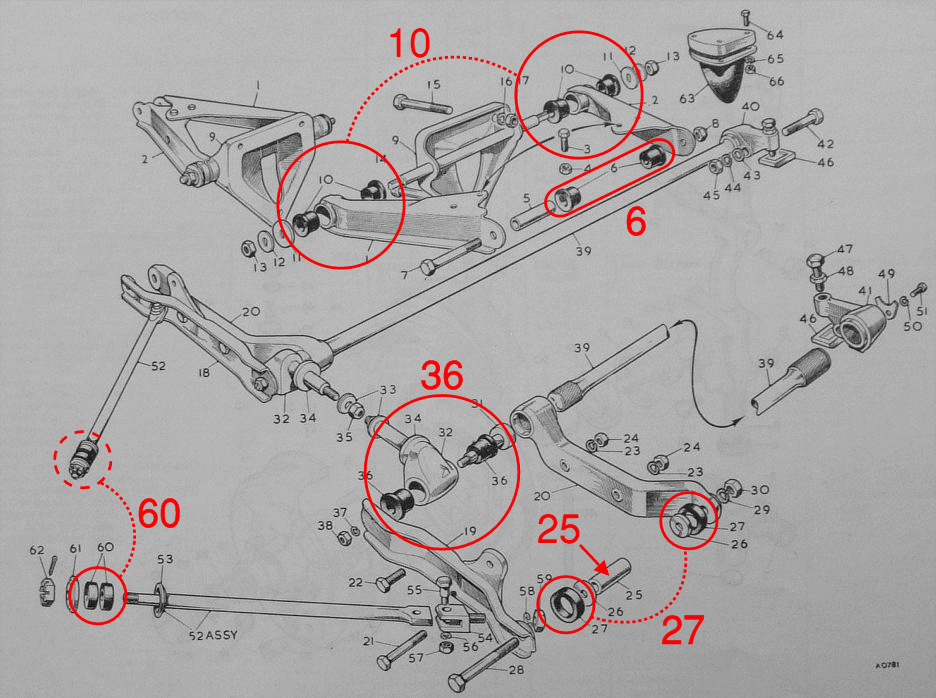

Morris Oxford front suspension
Illustration
No.		 Description Quantity
required		 BMC Part
No.		 Alternative
Part No.
6 Bush for upper link 4 ACH4039
10 Bush - arm to bracket 8 ACH4029
27 Seal - dust 4 AAA1664
36 Bush - eyebolt to arms 4 AAA1661 AAA1955
60 Bush - tiebar to frame 4 AAA2054

Not shown Rear springs/shackles 12 ACA5242

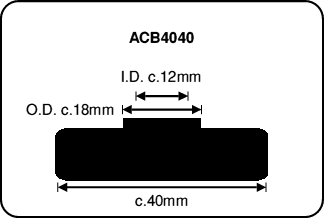

Shown below Oxford front upper shock absorber bush 4 ACB 4040
picture of Oxford front shocky bush
  1. When in tip-top condition the Oxford and Cowley have beautifully responsive rack and pinion steering, and the suspension is perfectly adequate with telescopic shock absorbers and torsion bars.
  2. It will take a day to disassemble both front sides, clean and paint the components, replace all the bushes and reassemble.
  3. Part No. 25 above is made from hardened steel and it can wear too. A replacement can easily be made by chopping off the end of a gudgeon pin from a Datsun engine! See your friendly engine reconditioners.
  4. The bushes for the telescopic shock absorbers haven't been shown above.
